Can I use the TM1637 module as an HMI?

Yes. The TM1637 LED Display & Button Module is a ready HMI: a 6-digit 7-segment LED display plus 8 tactile buttons on one board, controlled by 2 MCU pins (CLK and DIO). Use it as a simple HMI, counter display or timer display module for machines, counters, timers, test jigs and automation panels.

How do I make a production counter?

Connect the TM1637 LED Display & Button Module to a microcontroller using 2 pins (CLK and DIO). Count units or cycles in firmware, write the number to the 6-digit display, and use the 8 buttons for manual input such as add, subtract and reset. Embedded C driver files are provided with the module.

What is a low-cost HMI for a machine or controller?

A 6-digit 7-segment LED display with built-in buttons is a low-cost local HMI. The TM1637 LED Display & Button Module from Micronode LLP provides both on one board, driven by 2 MCU pins, for Rs. 499 including GST.

How do I make a digital timer, countdown or stopwatch display?

Use a microcontroller to keep time and send the digits to the TM1637 module over its 2-wire interface. The 6 digits can show minutes, seconds and tenths, and the 8 buttons can start, stop and reset the timer.

How can I display sensor readings such as temperature, pressure or flow?

Read the sensor with your microcontroller, then write the value to the TM1637 6-digit display. Buttons on the same module can switch between channels or units. It needs only 2 MCU pins.

Which display can I use for a digital weighing scale, energy meter or hour meter?

The TM1637 LED Display & Button Module works as the display and keypad for a digital scale or load-cell readout, a wattmeter or kWh counter, and equipment hour meters for motors, pumps and compressors.

REV 1.0

TM1637 6-digit 7-segment LED display module with 8 buttons, HMI display

PRODUCTS / DISPLAY MODULES

TM1637 6-Digit LED Display & Button Module, a ready HMI

Name: TM1637 6-Digit LED Display & Button Module
Brand: Micronode LLP
Price: 499 INR
Availability: InStock

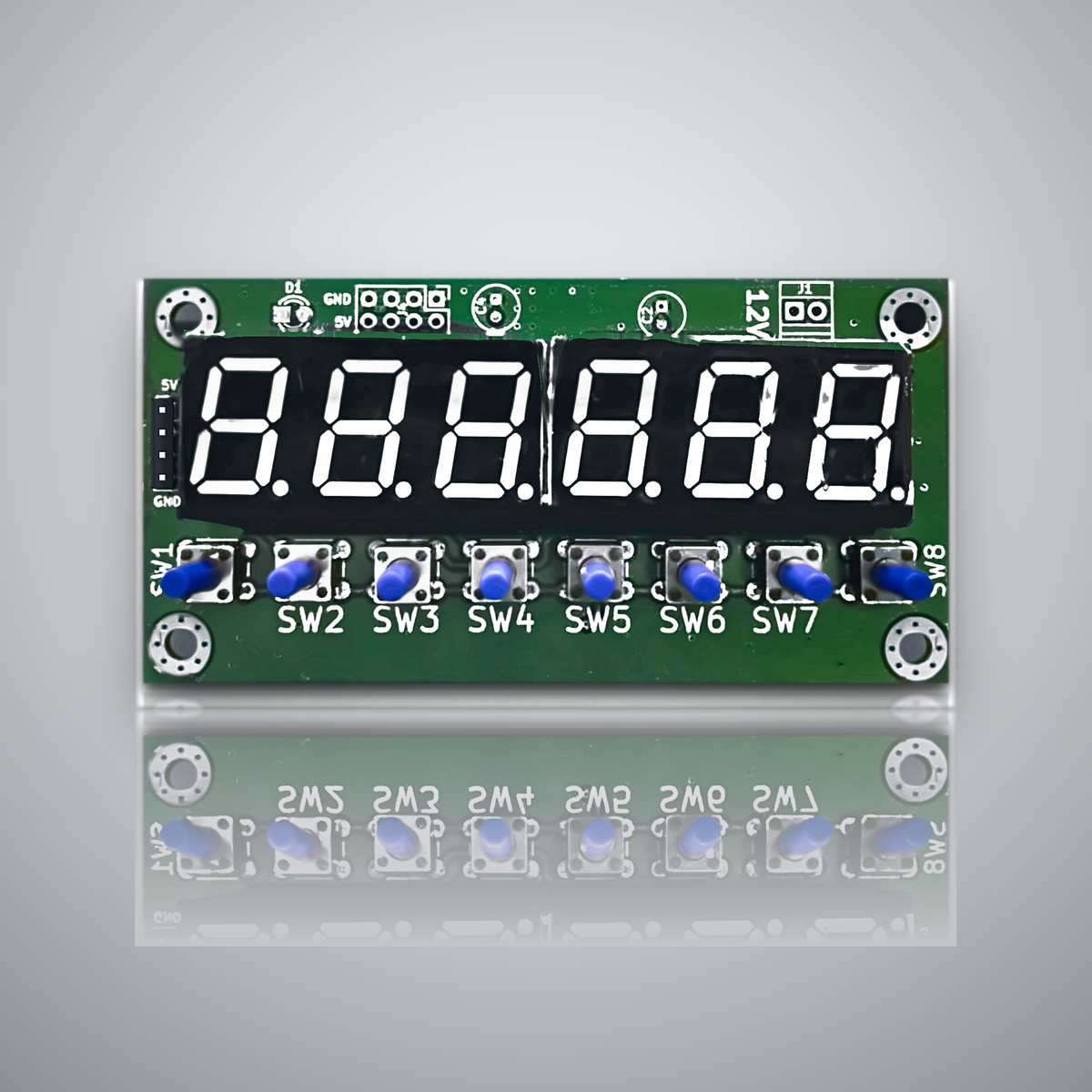

6-digit 7-segment LED display with 8 integrated tactile buttons. Driven via just 2 MCU pins (CLK + DIO) using onboard scan logic. Includes 5V supply header (J4) for powering auxiliary boards, and (D1) Power LED indicator. We provide Embedded C driver files to help with coding.

₹499 incl. GST · bulk pricing available

In stock

Digit Display

Buttons (SW1–SW8)

2 Pins

MCU Interface

12V / 5V

Power Input

SPECIFICATIONS

Display	6-digit 7-segment LED with decimal points
Buttons	8x tactile switches (SW1–SW8)
2-Wire Interface	CLK (Clock) + DIO (Data I/O)
Power Input	12V main power connector

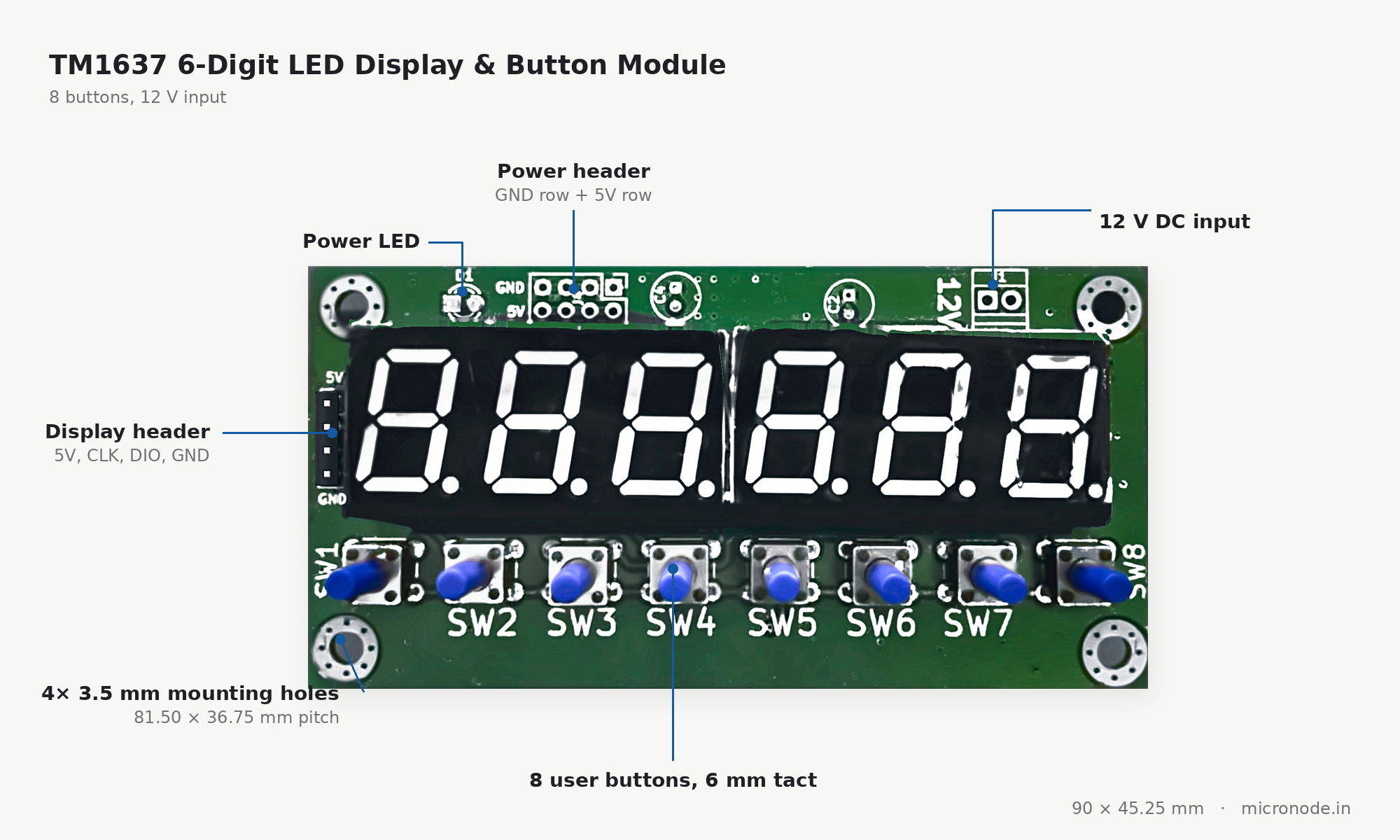

5V Supply Header (J4)	Double berg strip — 4×GND, 4×5V (for auxiliary boards)
Status Indicator	D1 Power LED

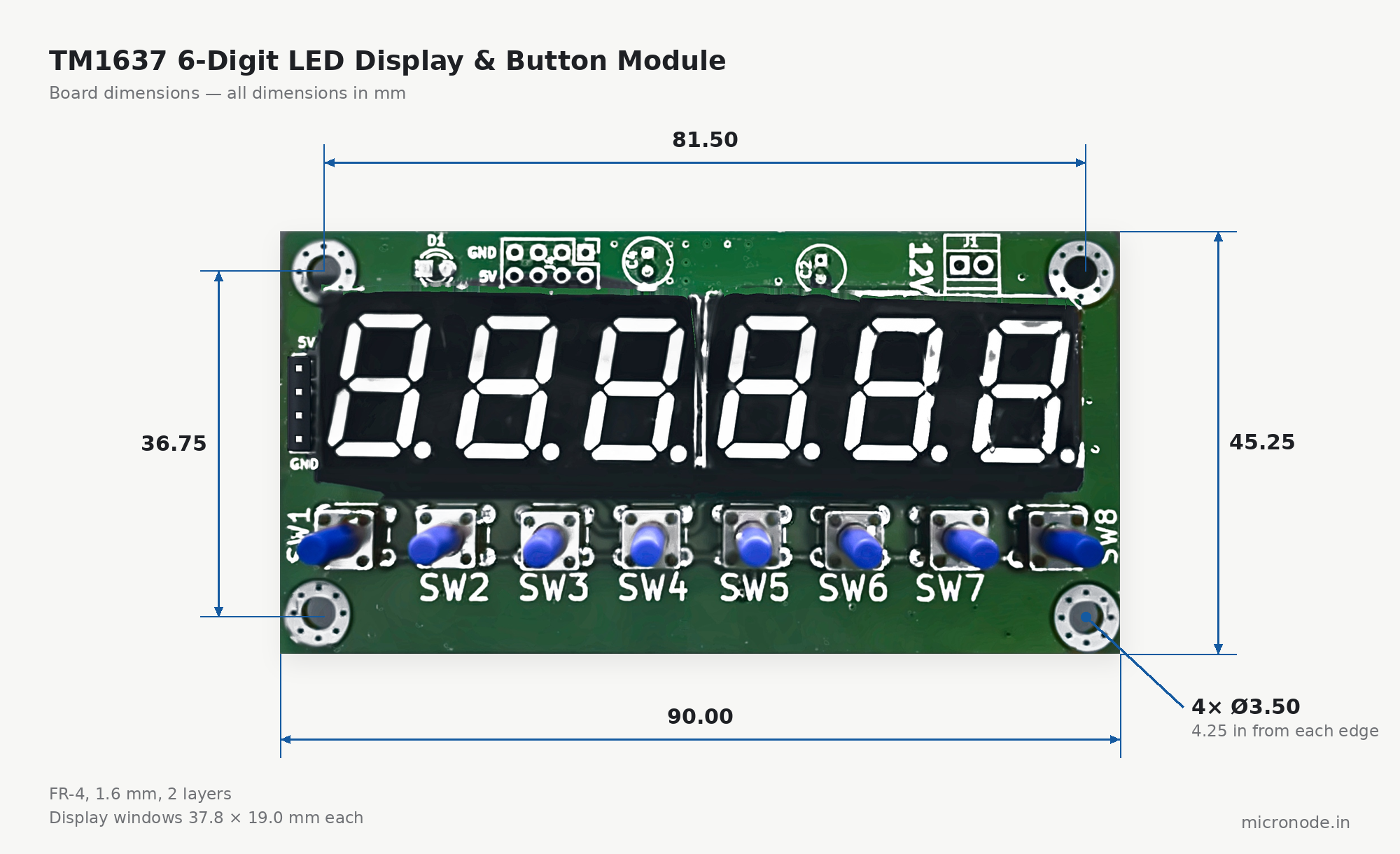

Mounting	4x mounting holes for panel/enclosure

DOWNLOADS

Module Datasheet Open Driver Files (Embedded C) Open In-House Developed Open STEP File Open

IDEAL FOR

Production Counters

Track units, cycles, or parts with manual operator input.

Machine HMI Panels

Low-cost local display + input for equipment control.

Timers & Counters

Digital countdowns, stopwatches, and tally boards.

Test & Calibration Rigs

Live readings with operator step-through controls.

Sensor Display Units

Temperature, pressure, flow rate, and environmental monitoring.

Digital Scales & Weighing

Industrial scales, batch weighing, and load cells display.

Power & Energy Meters

Wattmeter, kWh counters, and consumption monitoring.

Equipment Hour Meters

Motor, pump, and compressor run-time tracking.

CNC & Automation

Spindle speed, tool change counter, and job tracking.

FAQ for the TM1637 LED Display & Button Module →
