How do I evaluate the Nuvoton MG51 before a cost-down redesign?

Use the MG51 Dev Board from Micronode LLP. It has the MG51FB9AE already mounted with full I/O breakout, so you can run your firmware on real hardware and check peripherals, timing and code size before designing a new PCB. Rs. 295 including GST.

What can replace an STM8 or PIC microcontroller in a low-cost product?

The Nuvoton MG51 (MG51FB9AE) is a low-cost 1T 8051 with UART, I2C, SPI and ADC that can be considered. Port and test your firmware on the MG51 Dev Board with the free SDCC toolchain before you commit to a redesign.

What board can I use for small controllers, timers and sensor projects with an 8051?

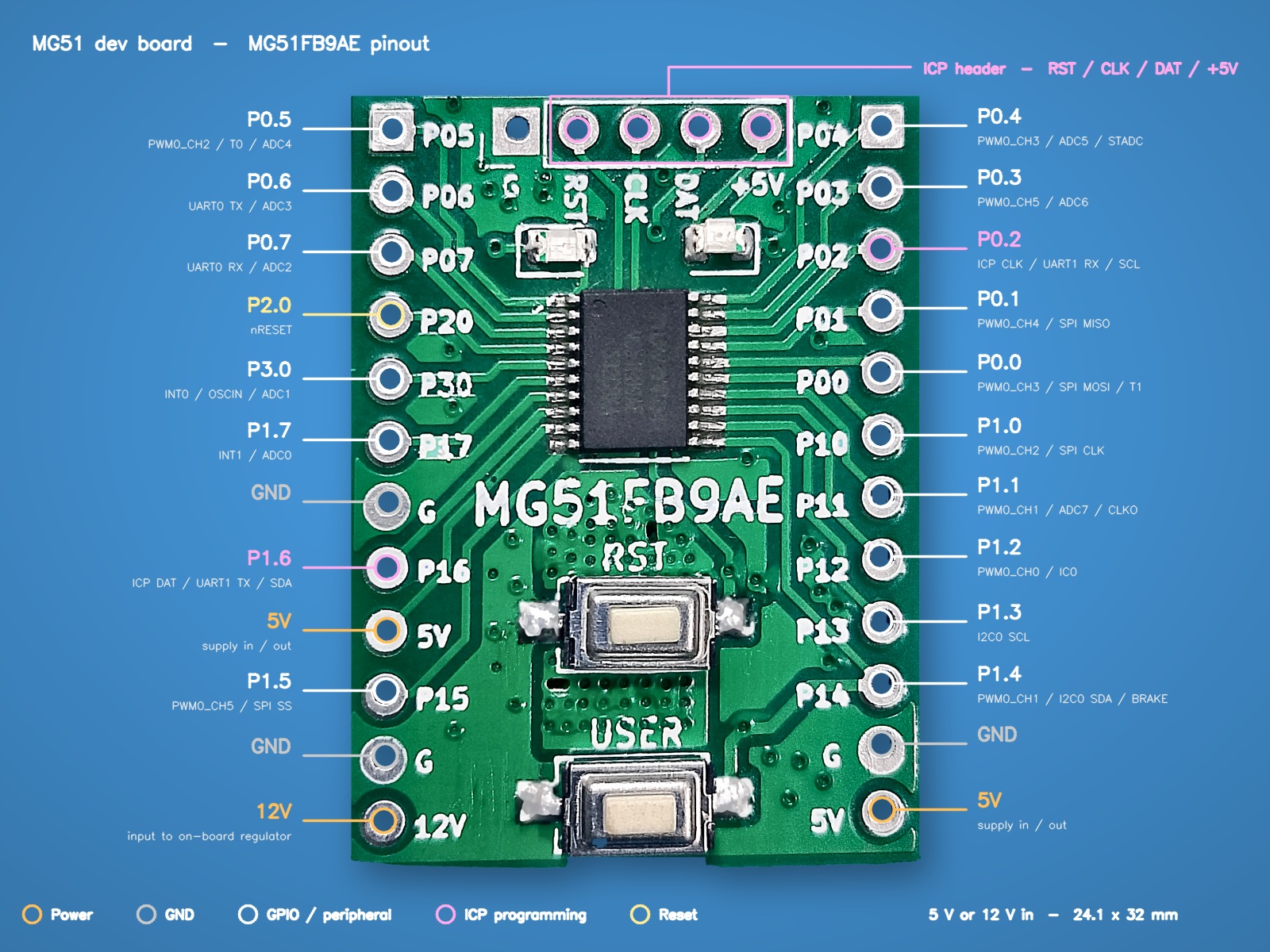

The MG51 Dev Board breaks out all I/O of the MG51FB9AE on 2.54 mm headers and programs over a 4-pin ICP header with a Nuvoton Nu-Link, so it suits small controllers, timers and sensor interfaces.

What is a good 8051 board for firmware training?

The MG51 Dev Board needs only 5V or 12V and a Nu-Link programmer to start, so students and engineering teams can flash example code immediately without soldering a TSSOP-20 chip.

REV 1.0

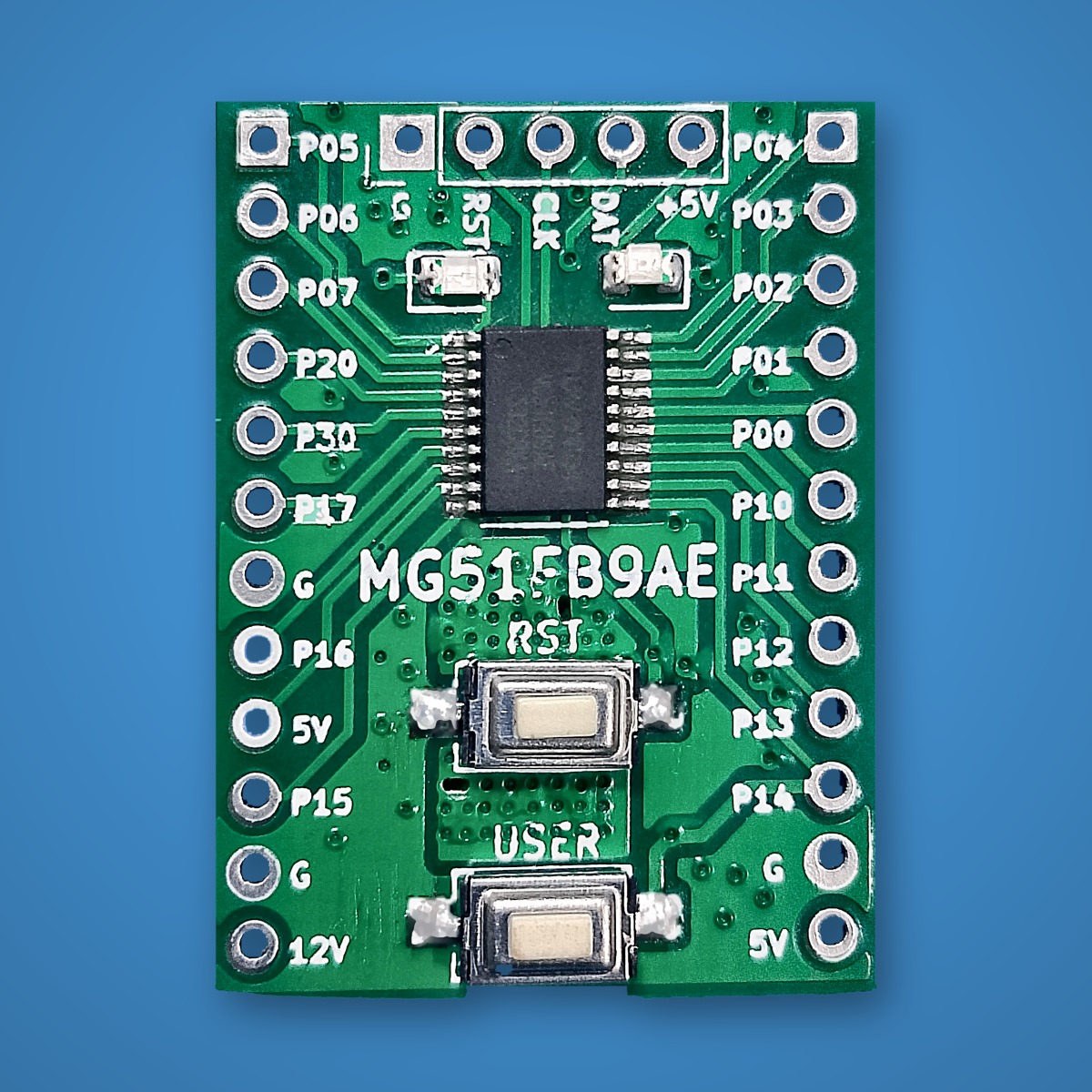

MG51FB9AE Nuvoton 8051 development board in use

PRODUCTS / DEV BOARDS

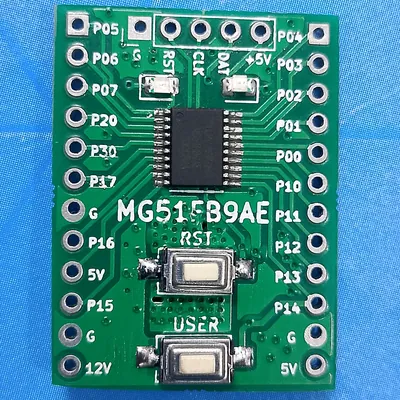

Nuvoton MG51 (MG51FB9AE) development board.

Name: MG51 Dev Board
Brand: Micronode LLP
Price: 295 INR
Availability: InStock

A development board for the Nuvoton MG51 (MG51FB9AE), a 1T 8051 microcontroller, with full I/O breakout on 2.54 mm headers. Programs over the 4-pin ICP header with Nuvoton Nu-Link, and ships ready for the free SDCC toolchain.

₹295 incl. GST · bulk pricing available

In stock

MHz Core

16KB

Flash

GPIO Out

5V / 12V

Power via header pins

SPECIFICATIONS

MCU	MG51FB9AE (Nuvoton 8051, 1T core)
Memory	16 KB flash / 256 B SRAM
Interfaces	UART · I2C · SPI · ADC
Toolchain	SDCC · Nu-Link

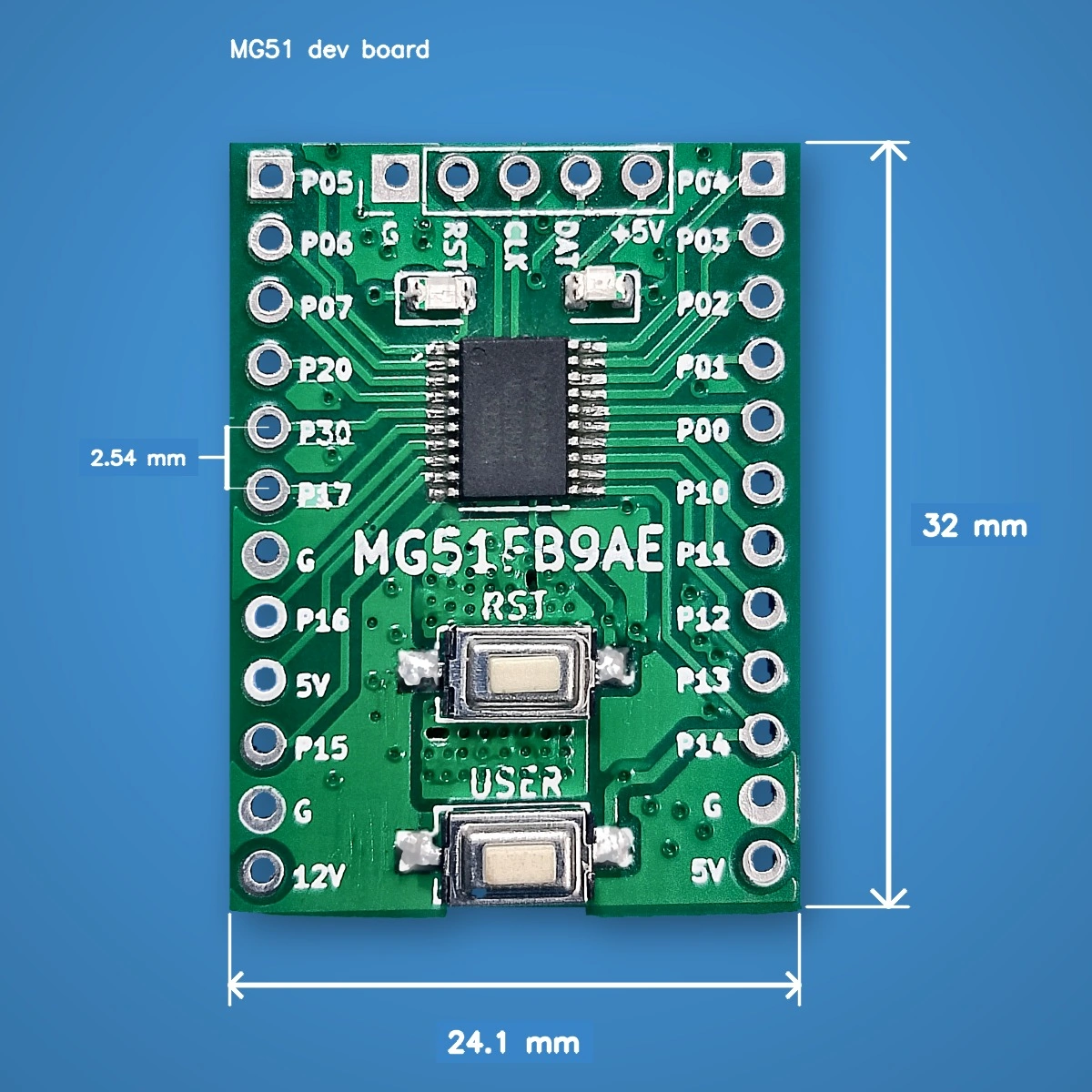

Dimensions	24.1 × 32 mm

DOWNLOADS

Schematic Open Pinout Map Open Datasheet Open Getting Started Open Migrating from PIC/STM8/8051 Read

Bring-up time −97%

<1 hvs 16–32 h

Bare MG51 IC16–32 h

MG51 Dev Board< 1 h

IC in hand → first firmware running

First prototype up to 40%

40%faster

2-week prototype sprint20–40%

3-week prototype sprint13–27%

Hand-soldered joints & wires 35 - 0

0to solder by hand — every one a point of failure removed

TSSOP-20 joints20

Power + ICP wiring~15

Parts to source 12 → 1

1line on your BOM instead of ~12

MCU, adapter, LDO, caps, reset parts, headers, ICP, LED… vs one board

Typical applications & FAQ for the MG51 Dev Board →
